Art. no: G-RB-00003
IN STOCK
Brand:
GORE Hydraulic Hammer G680
Product description

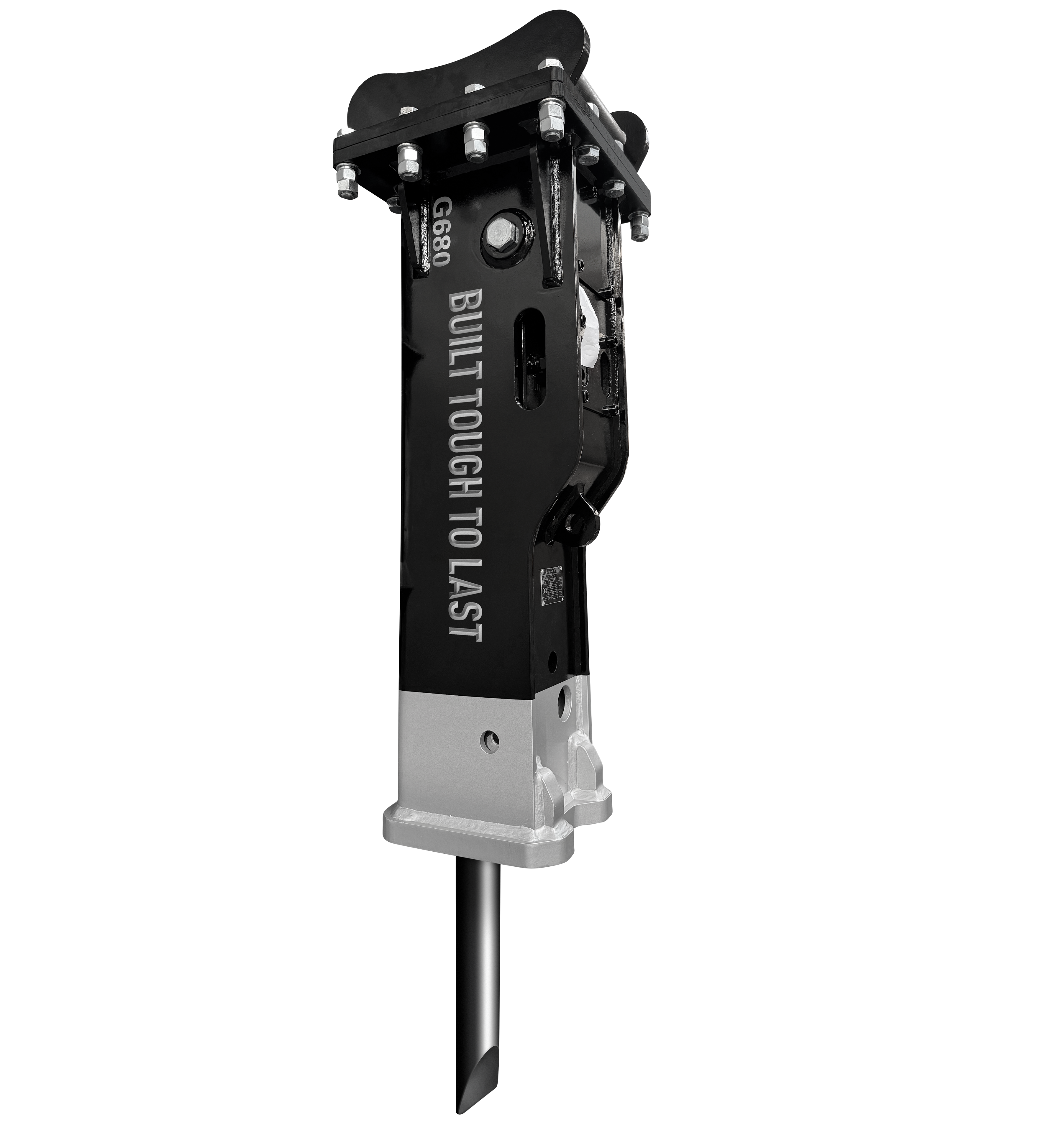

GORE G680 hydraulic hammer for 3 to 7 tonne excavators
The G680 is built for demolition and breaking on excavators from 3 to 7 tonnes, from demolition in built-up areas to heavier breaking of rock and concrete.
It needs 40 to 70 L/min of oil flow at 110 to 140 bar, so check your machine's auxiliary circuit against those two figures first. It delivers 677 J per blow at 500 to 900 blows per minute through a 68 mm chisel.
The housing is high-strength alloy steel, and the construction is designed to damp vibration and reduce the load on your machine.
S40 is the bracket size matched to this hammer. You choose the bracket when you order, so you can take a different size if your machine's coupler needs one.
2-year warranty after registration. The warranty terms set out what is covered.
Specification
| Machine weight | 4–7 t |
|---|---|
| Weight | 339 kg |
| Body Weight | 152 kg |
| Oil flow | 40–70 L/min |
| Working pressure | 108–137 bar |
| Blows per minute | 500–900/min |
| Tool diameter | 68 mm |
| Hose Diameter | 12.7 mm |
Warranty
2-year warranty
GORE, register to activate. Terms
Delivery
Spare parts & chisels
Need extra chisels or spare parts? Contact us and we will help.
Help choosing
Talk to an attachment expert. Mon–Fri 07:00–19:00.
What’s included

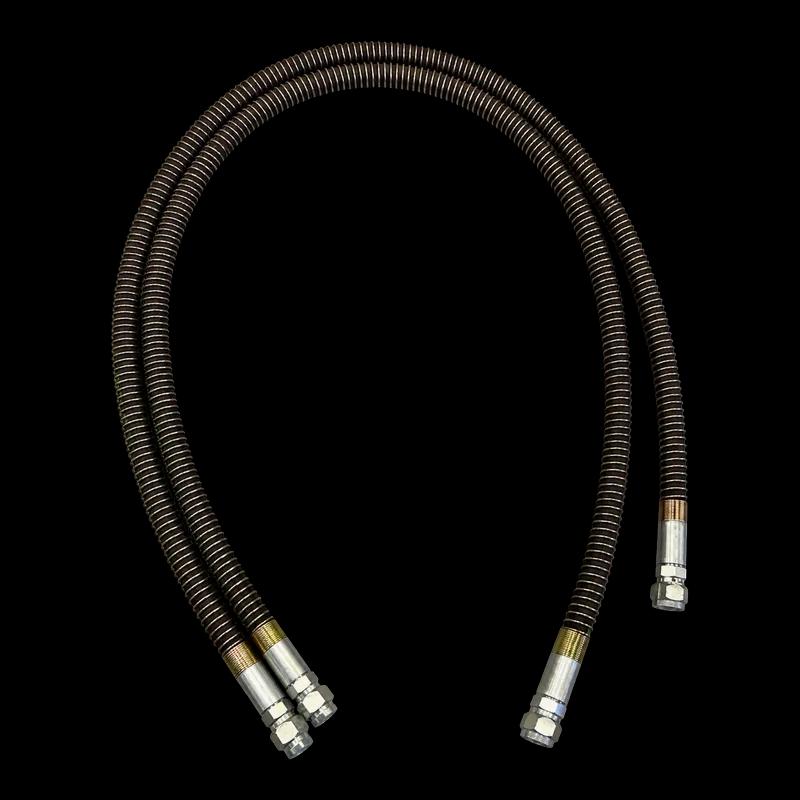

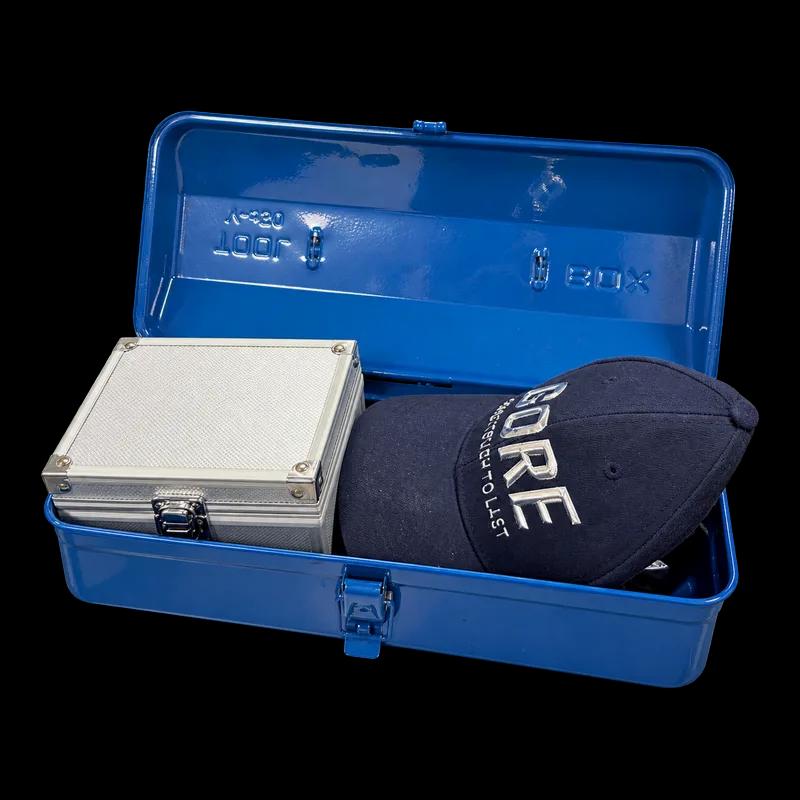

All of this comes with the hammer: a tool kit, a Dekker pressure gauge, a nitrogen chamber, standard hoses and couplings, and two chisels. All included in the price.
Tool kitIncluded

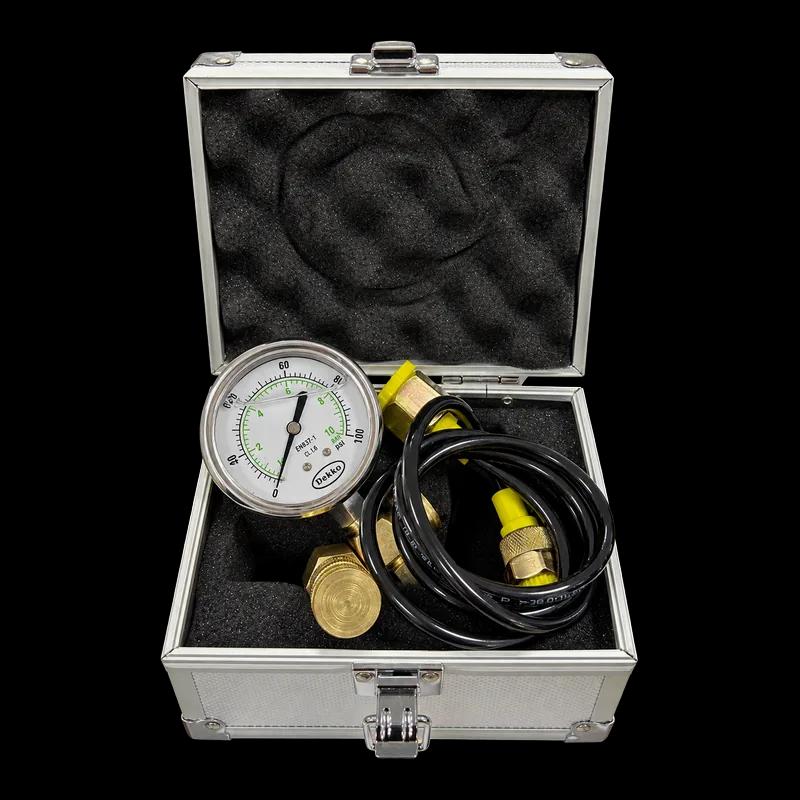

Dekker pressure gaugeIncluded

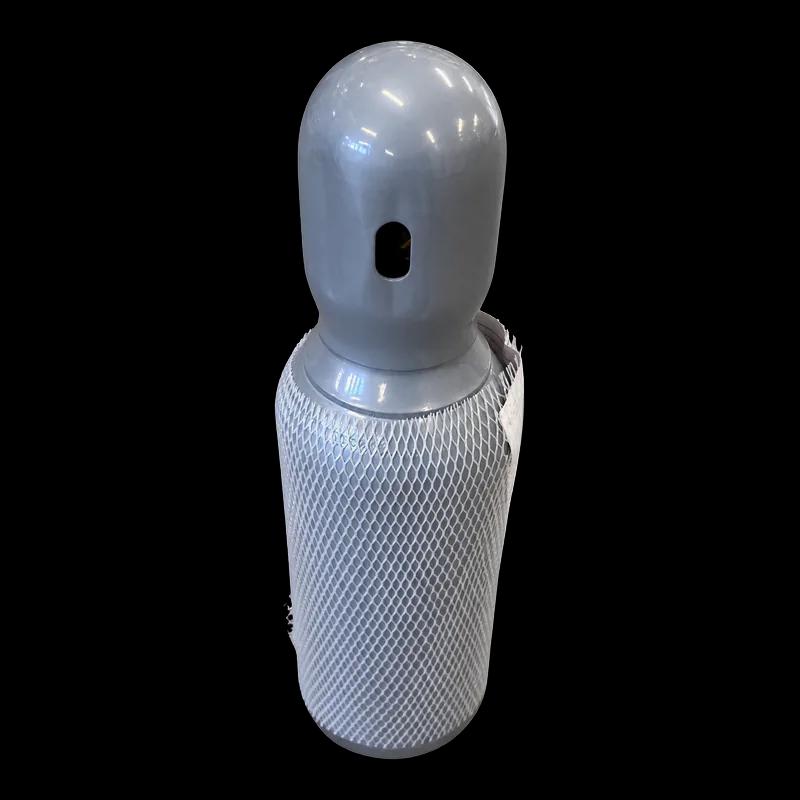

Nitrogen chamberIncluded

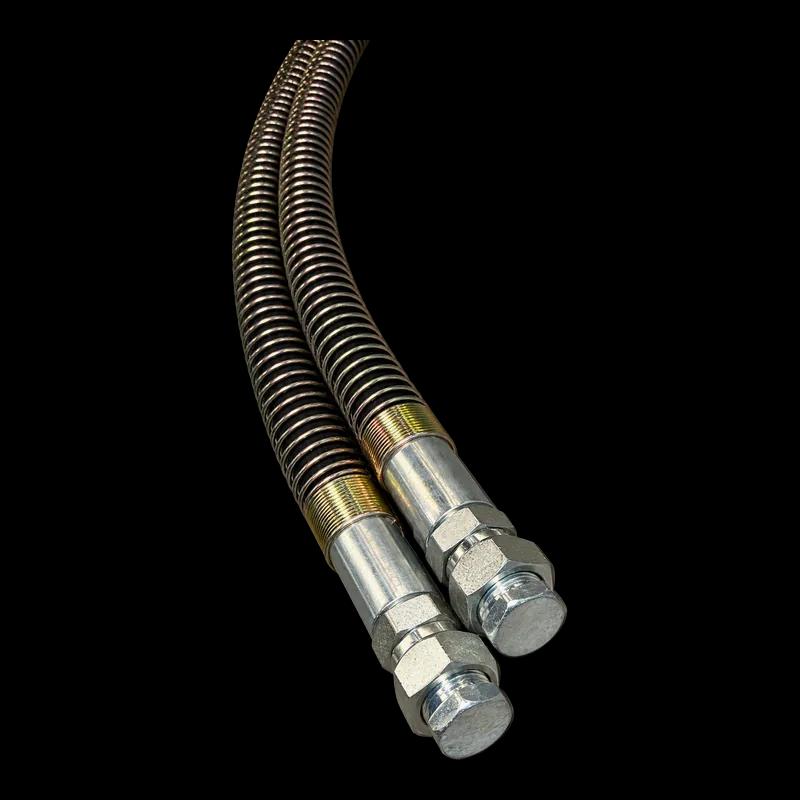

Standard hosesIncluded
CouplingsIncluded

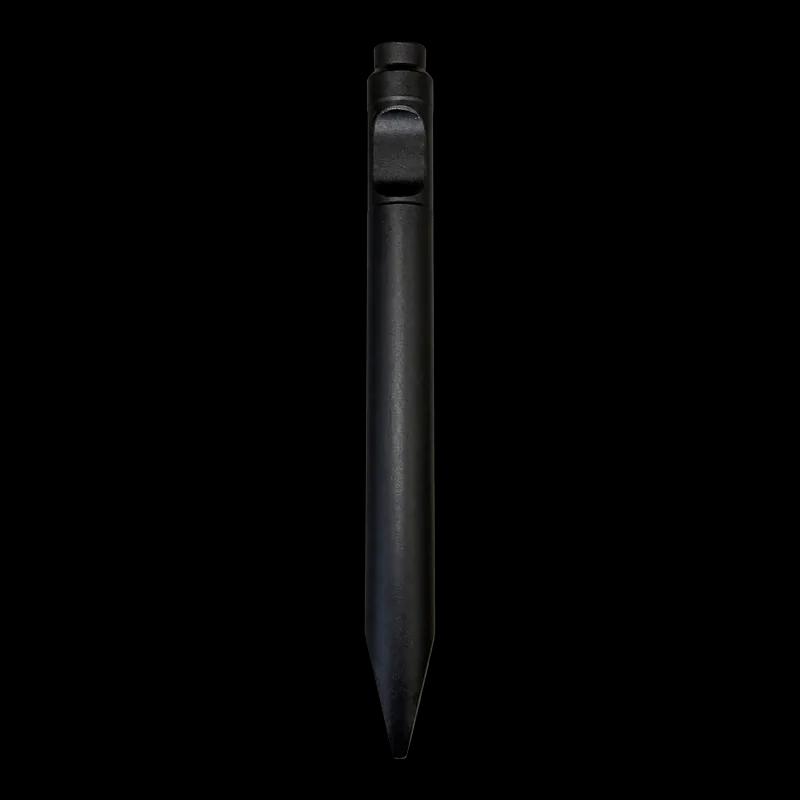

Pointed chiselIncluded

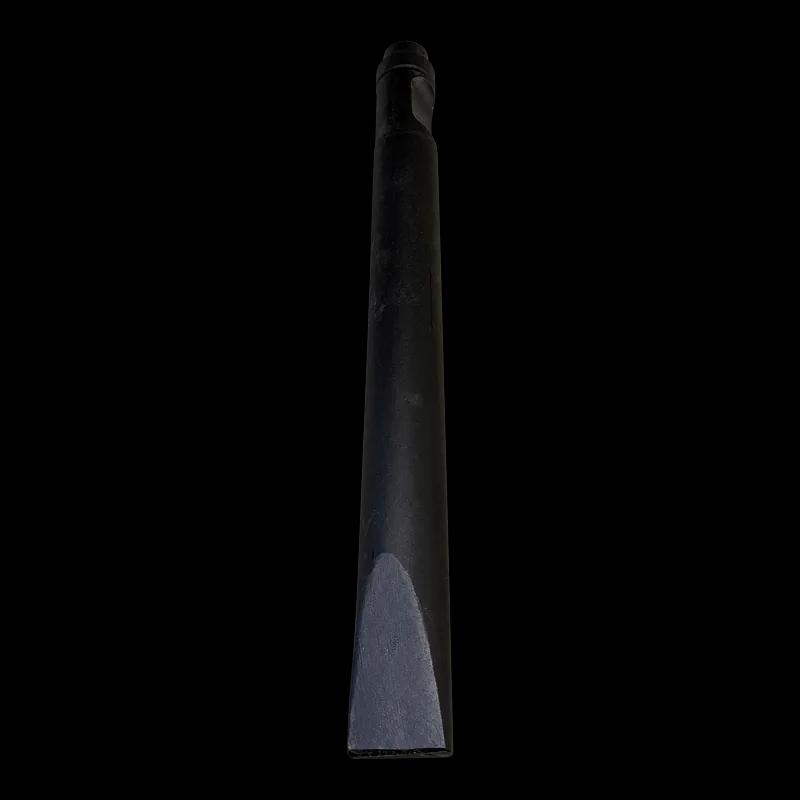

Flat chiselIncluded
Shipping & returns
| Delivery time | 2–7 working days. |
| Returns | 30-day return window on unused stocked goods in their original packaging. The buyer pays return shipping. If an item arrives defective or we sent the wrong one, we cover shipping both ways. The 30-day window does not cover pre-orders; the 14-day statutory right of withdrawal for consumers always applies. |
| Pickup | Free pickup available from Saltsjö-Boo. |
